Model No.: DST-3000

Oil Density Measuring Equipment is designed and made as per national standard GB/T 1884-2000 "Test Methods for Density of Petroleum and Liquid Petroleum Products (Densimeter methods)".

Place of Origin: Chongqing, China

Brand Name: FUOOTECH

Model Number: DST-3000

Power supply: AC 220V±10%, 50 Hz

Packing datails: In Standard Exportation Plywood Case

Delivery time: 15 days

Payment terms: T/T, L/C, Cash, Negotiable

Inquiry Now

Detailed Description

Inquiry Now

Application:

The petroleum/Lube oil density testing equipment DST-3000 is designed and made as per national standard GB/T 1884-2000 "Test Methods for Density of Petroleum and Liquid Petroleum Products (Densimeter methods)". The density tester is suitable to determine density of liquid petroleum products using a densimeter.

Working condition:
1. Ambient temperature: -10°C ~ +40°C; The temperature should not change more than ±2°C;
2. Relative humidity: ≤85%;
3. The instrument should be placed on a flat workbench during operation and please try your best to reduce air convection during a test.
4. If the instrument is not used for long time, please store it at a dry place.

Technical Specification:

Model	DST-3000 Oil Density Testing Equipment
Power supply	AC 220V±10%, 50 Hz
Bath cubage	Inner Dia.300 mm×340 mm
Test tube	500 ml, 1000ml (1000ml need to be customized)
Heating power	700 W, 1000 W
Temperature controller	Temperature controlling range: 0 °C~100 °C
	Temperature controlling accuracy: ±0.1 °C
	Temperature sensor: Industrial platinum resistance; its scale number is Pt100
Thermometer	It is a total immersed mercury thermometer having scale division of 0.2 °C
Ambient temperature	-10 °C~+40 °C, Temperature fluctuation ≤ 2 °C
Relative humidity	≤85%
Dimension	775595cm
Weight	32kg

Photos for reference:

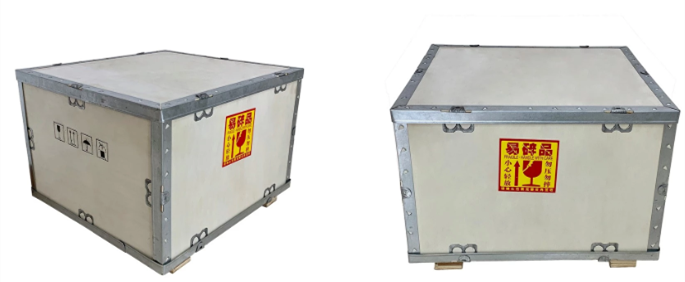

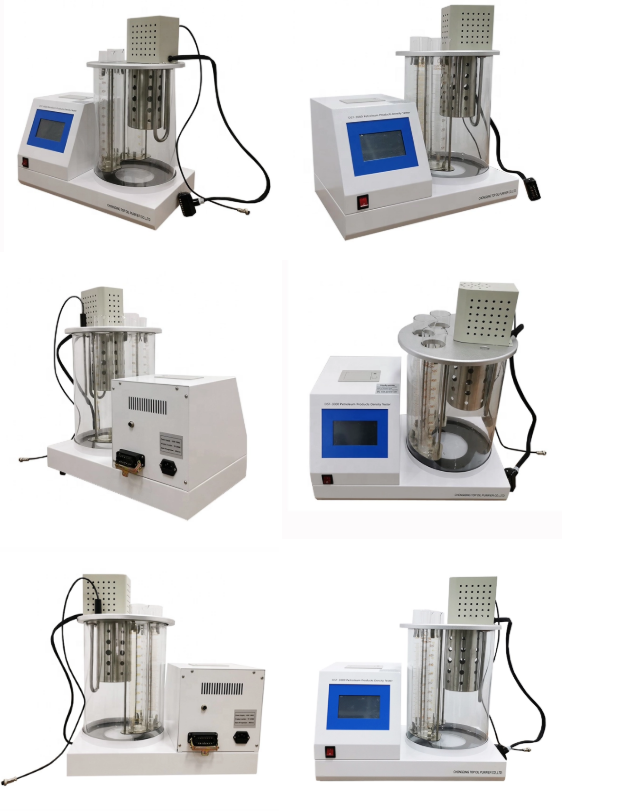

Photos of DST-3000 oil density tester- FUOOTECH Packing of DST-3000 oil density tester- FUOOTECH
